SK Niigata Seiki - 360-DEG ROTATING DUAL CAMERA BORE SCOPE | JSR GROUP

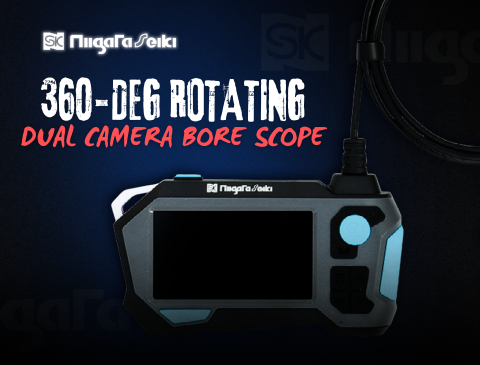

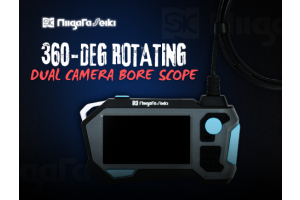

360-DEG ROTATING DUAL CAMERA BORE SCOPE

Equipped with a 360-deg rotating for Front and Side monitoring simultaneously For recording Still images and Videos

IP68 equivalent cameras offer dustproof and waterproof performance!

With oil-resistant, suitable for observation under harsh environments.

Equipped with white LEDs to illuminate the front and side of the cameras.They brighten dark pipe while recording.



With the 360-deg rotating dual camera, no side-view adapter
is required





SPECIFICATIONS

Interface USB-TypeC
Storage microSD Card (up to 128GB, Class10 or above)
File format Still images: JPEG format  Videos: AVI format
Standard storage capacity ※For a 32GB SD card Still images: Approx. 280,000 shots (2592×1944) Videos: Approx. 180 min. (1920×1080)
Display 4.5-inch IPS display
Protection rating of camera IP68 equivalent dustproof & waterproof, with oil-resistant
Camera field of view Approx. 70°
Camera focal distance  Approx. 15 ～ 30mm
Camera size Camera dia.: Approx. 9mm  Cable dia.: Approx. 4.5mm
Camera illumination Front: White LED x 8pcs, Side: White LED x 1pc, Body: White LED x 4pcs
Power supply Lithium-ion battery
Operating temperature range Camera lens: 0°C ～ 90°C Main unit: 5°C ～ 40°C
Body dimensions Approx. 175×100×36mm
Weight Approx. 310g



Order No. Model No. Camera Cable Length
140220 E902-RD 2m
140221 E905-RD 5m
140222 E910-RD 10m
